Name: NUT - 12MM ACORN - ALUM
SKU: WCMU0038-FWE-1

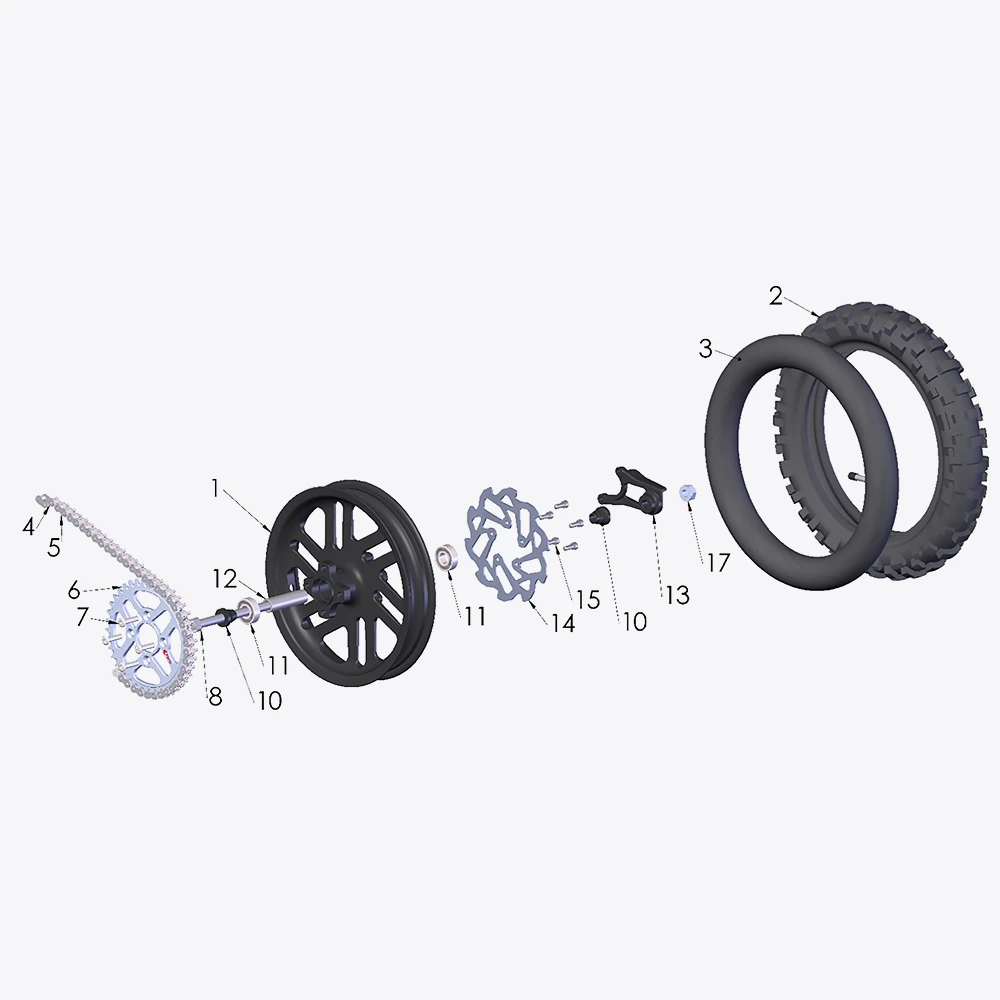

Nr. on User Manual Photo	Part code	Name & Description	Price
	WAMUR012-AR	WHEEL ASSEMBLY – REAR 12 FWE/SR	Login for Prices
Accessory	HKMU0002	BOLT KIT – REAR SPROCKET	Login for Prices
1	WAMUR021BLK	REAR WHEEL W/BEARINGS – BLACK	Login for Prices
2	WCMU1075D34	TIRE – REAR – 70/100-10 – DUNLOP MX34	Login for Prices
3	WCMUTU10	TUBE, 10″	Login for Prices
4	PCMU0001	MASTER LINK 420	Login for Prices
5	PCMU0102	CHAIN 420 X 102	Login for Prices
6	PCC50238BLK	38T SPROCKET (STANDARD) 415	Login for Prices
6	PCC502xx	SPROCKET xx DENOTES TEETH – RANGE OF TEETH (34-45)	Login for Prices
7	HCSP0701	M7X30mm SPECIAL HEAD BOLT (4 REQ’D)Nr. of required pieces: 4	Login for Prices
7A	HCWF0701	7mm FLAT WASHER (4 REQ’D)Nr. of required pieces: 4	Login for Prices
7B	HCNL0701	M7 LOCKNUT (4 REQ’D)Nr. of required pieces: 4	Login for Prices
8	GCMU0020	BOLT – TI – SWINGARM PIVOT and AXLE – CX50	Login for Prices
10	WCMU0101BLK	WHEEL SPACER (2 REQ’D)Nr. of required pieces: 2	Login for Prices
11	WCMU0120	WHEEL BEARING (2 REQ’D)Nr. of required pieces: 2	Login for Prices
12	WCMU0041	WHEEL BEARING SPACER	Login for Prices
13	BCMU0045	CARRIER – BRAKE	Login for Prices
14	BCMU0222	BRAKE ROTOR	Login for Prices
15	HCBC0514	M5X14mm SOCKET HEAD CAP SCREWS (5 REQ’D)Nr. of required pieces: 5	Login for Prices
17	WCMU0038	NUT – 12MM ACORN – ALUM	Login for Prices
