Name: M4x 16mm BUTTON HEAD (2 REQ’D)
SKU: HCBB1416-3

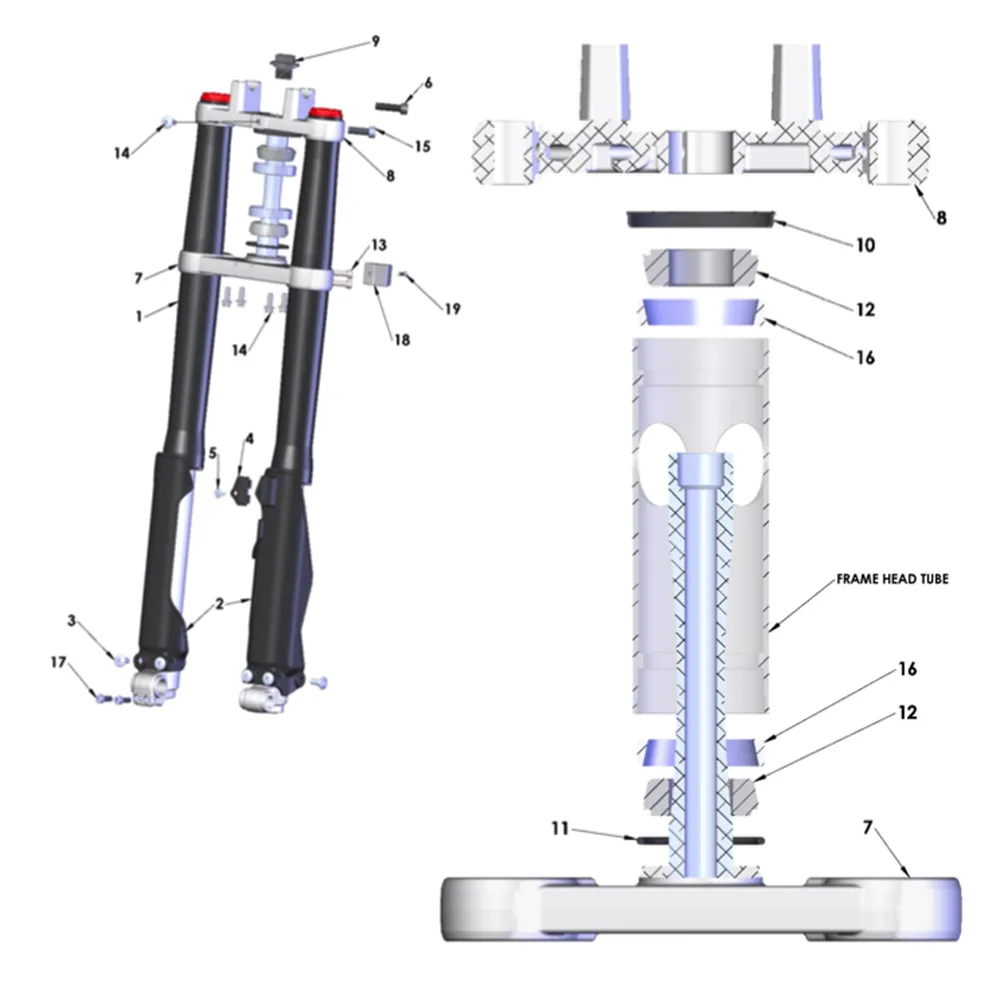

Nr. on User Manual Photo	Part code	Name & Description	Price
Tool	MCMUTL44	TOOL – BEARING AND SEAL INSTALLER ASSY	Login for Prices
Accessory	FKMU0008	KIT – STEERING STEM BEARINGS, RACES AND SEALS	Login for Prices
1	KACJ2018	FORK ASSEMBLY JR – FORK LEGS ONLY	Login for Prices
2	KCMU0035FXX	FORK GUARD SET – MEGA FLO YELLOW (STOCK)	Login for Prices
2	KCMU0035WHT	FORK GUARD SET – WHITE	Login for Prices
2	KCMU0035	FORK GUARD SET – BLACK (SHOWN)	Login for Prices
3	HCSP0610	BOLT – FORK GUARD (7 REQ’D, NUMBER PLATE & FORK GUARD)Nr. of required pieces: 7	Login for Prices
4	KCMU0036	BRAKELINE CLAMP	Login for Prices
5	HCSP0004	PLASTIC SCREW	Login for Prices
6	HCBC0806	M8x 30mm SHCS	Login for Prices
7	FAMU0020	TRIPLE CLAMP BOTTOM ASSY, (CLAMP & STEM)	Login for Prices
8	FCMU0071	TRIPLE CLAMP TOP	Login for Prices
9	FCMU0074	BOLT – STEERING STEM – ALUMINUM	Login for Prices
10	FCMU0079	DUST COVER (1 REQ’D)	Login for Prices
11	FCMU0044	O-RING (1 REQ’D)	Login for Prices
12	FCMU0004	STEERING HEAD BEARING (2 REQ’D)Nr. of required pieces: 2	Login for Prices
13	HCBC0625	M6X25mm SOCKET HEAD CAP SCREW	Login for Prices
14	HCBF0620	M6X20mm FLANGE HEAD BOLT (FENDER)	Login for Prices
15	HCBC0825	M8x 25mm SOCKET HEAD CAP SCREW	Login for Prices
16	FCMU0011	RACE – STEERING STEM BEARING (2 REQ’D)Nr. of required pieces: 2	Login for Prices
17	HCBC0620	M6X20MM SOCKET HEAD CAP SCCREW (2 REQ’D)Nr. of required pieces: 2	Login for Prices
18	FCMU0175MP	STEERING STOP (2 REQ’D)Nr. of required pieces: 2	Login for Prices
19	HCBB1416	M4x 16mm BUTTON HEAD (2 REQ’D)Nr. of required pieces: 2	Login for Prices
