Name: AXLE NUT 12MM
SKU: HCNL1201-4

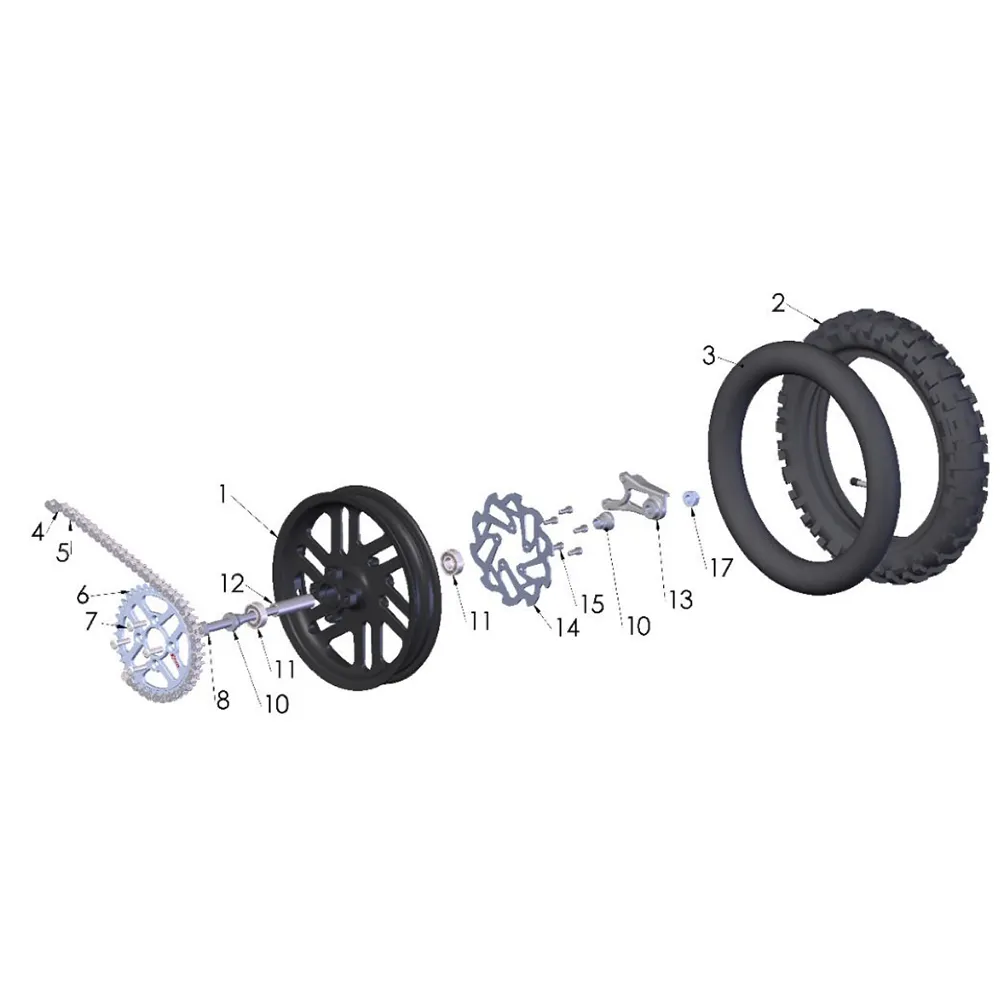

Nr. on User Manual Photo	Part code	Name & Description	Price
Accessory	HKMU0002	BOLT KIT – REAR SPROCKET	Login for Prices
1	WAMUR021BLK	REAR WHEEL W/BEARINGS – BLACK	Login for Prices
2	WCMU1075D34	TIRE – REAR – 70/100-10 – DUNLOP MX34	Login for Prices
3	WCMUTU10	TUBE, 10″	Login for Prices
4	PCMU0001	MASTER LINK 420	Login for Prices
5	PCMU0088	CHAIN 420 X 88	Login for Prices
6	PCC50138	38T SPROCKET (STANDARD) 420	Login for Prices
7	HCSP0701	M7X30mm SPECIAL HEAD BOLT (4 REQ’D)Nr. of required pieces: 4	Login for Prices
7A	HCWF0701	7mm FLAT WASHER (4 REQ’D)Nr. of required pieces: 4	Login for Prices
7B	HCNL0701	M7 LOCKNUT (4 REQ’D)Nr. of required pieces: 4	Login for Prices
8	WCMU0016	BOLT – AXLE – CX50	Login for Prices
10	WCMU0101	WHEEL SPACER (2 REQ’D)Nr. of required pieces: 2	Login for Prices
11	WCMU0120	WHEEL BEARING (2 REQ’D)Nr. of required pieces: 2	Login for Prices
12	WCMU0041	WHEEL BEARING SPACER	Login for Prices
13	BCMU0045	CARRIER – BRAKE	Login for Prices
14	BCMU0222	BRAKE ROTOR	Login for Prices
15	HCBC0514	M5X14mm SOCKET HEAD CAP SCREWS (5 REQ’D)Nr. of required pieces: 5	Login for Prices
16	HCWF1202	AXLE WASHER	Login for Prices
17	HCNL1201	AXLE NUT 12MM	Login for Prices
